- XH series JST connector
- Number of pin : 2
- Current rating : 3A
- Voltage rating : 250V
- Temperature range : -25°C to +85°C
Description:
- Length:20cm;
- Wire diameter:1.5mm
- Material: Silicone material
- Easy to peel off.
- Use: For a variety of conventional indoor LED Strip, 5050\3528\3014 RGB color Led Strip.
- Note: Before connecting to your device, check the color of the wires and their respective polarities
- Female Clip Connector | JST Clip Connectors | 2 pin connector
- Good Quality Wire

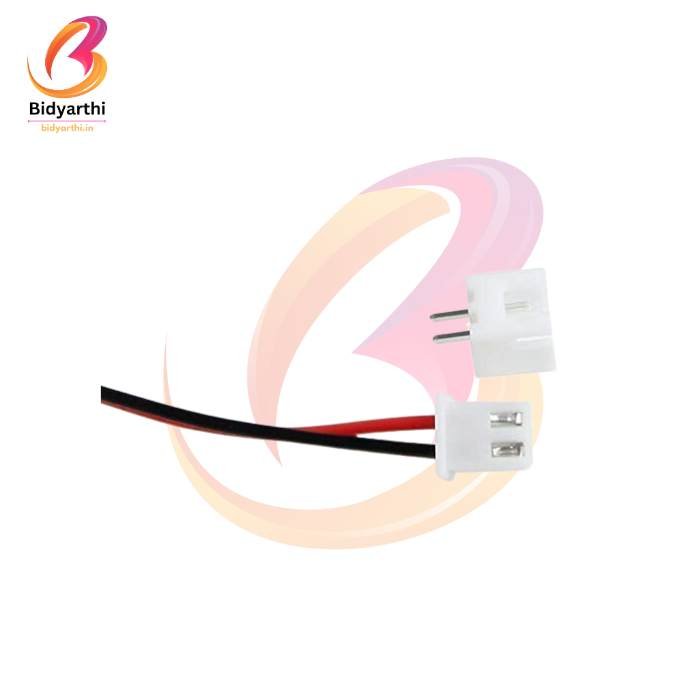

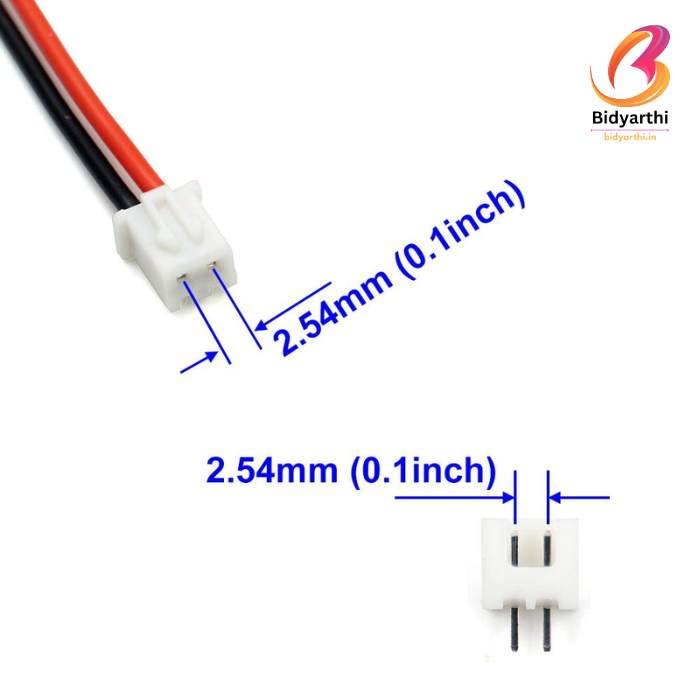

2 pin JST XH Male connector. This is a wire to board connector. It is very small with mounting height of 9.8 mm. It is a crimp style connector, and a disconnect table type. Its a top entry version.
The wires needs to be crimped to terminal, which in turn can be fitted into this female connector, which will be connected to male connector soldered on any board. It has a good locking mechanism, and requires force to remove the female connector from male connector on board. There by removes the problem of unwanted disconnection.

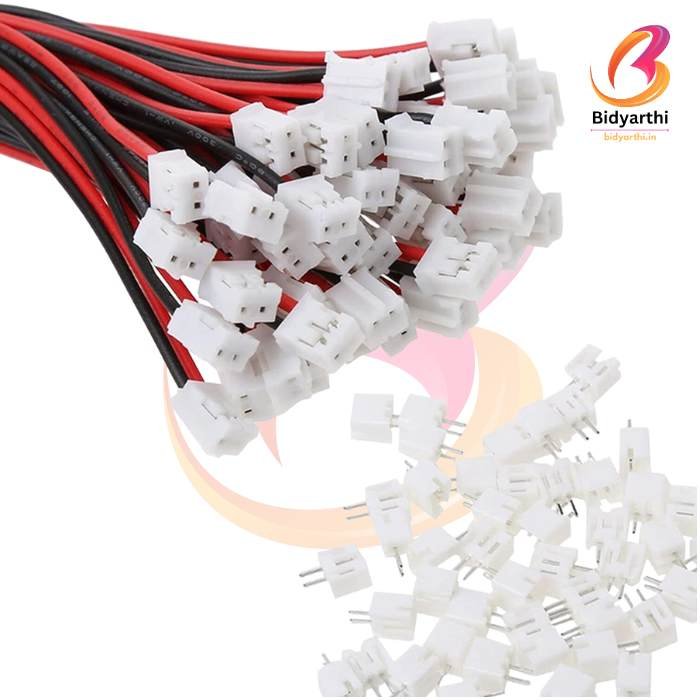

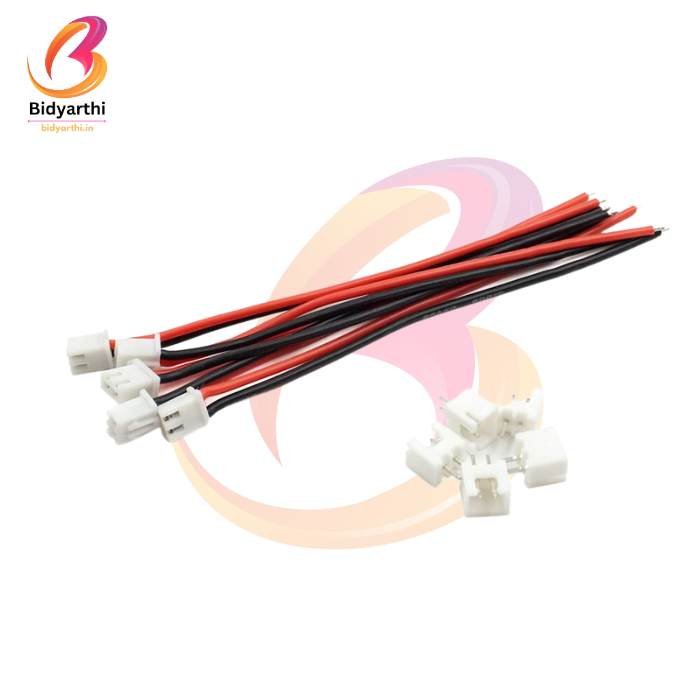

Package includes: 5 Pair JST XH 2.5-2 Pin Battery Connector Plug Female & Male with 200MM Wire
