• Number of digit : 1
• Display type : 7 segment
• Configuration : common anode

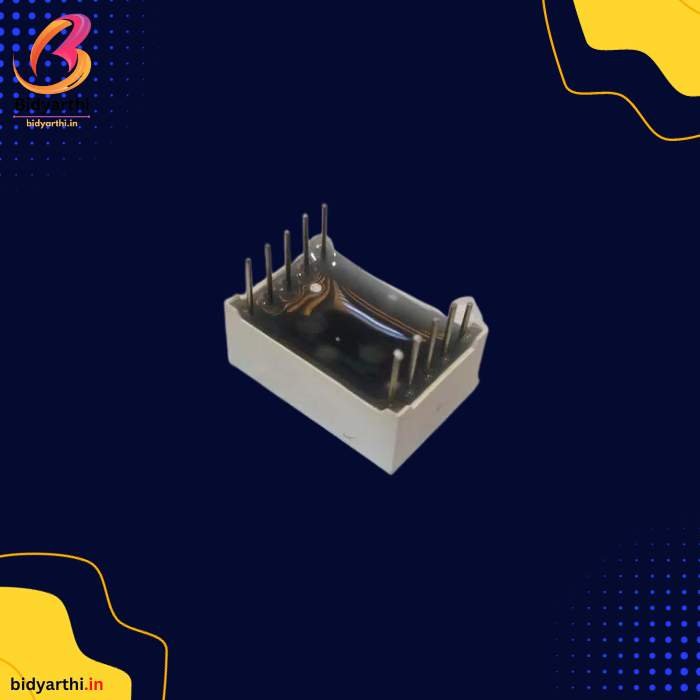

• Number of pins : 10

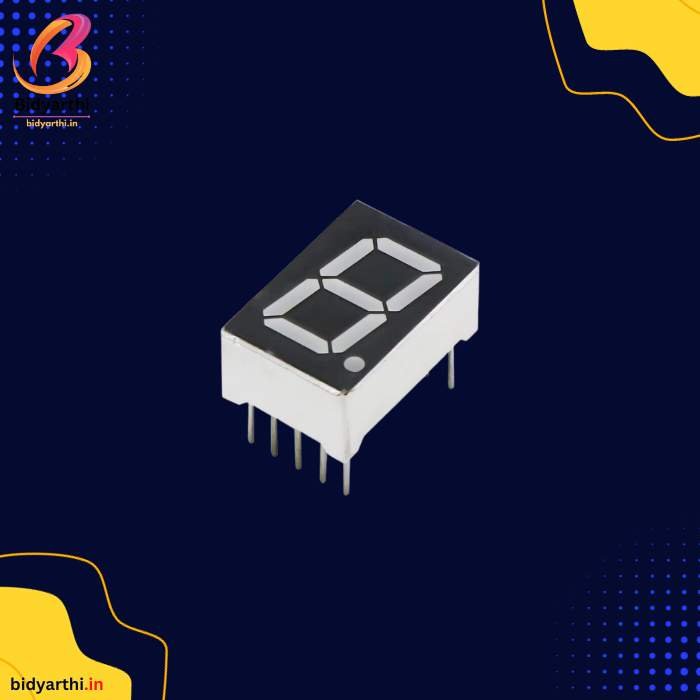

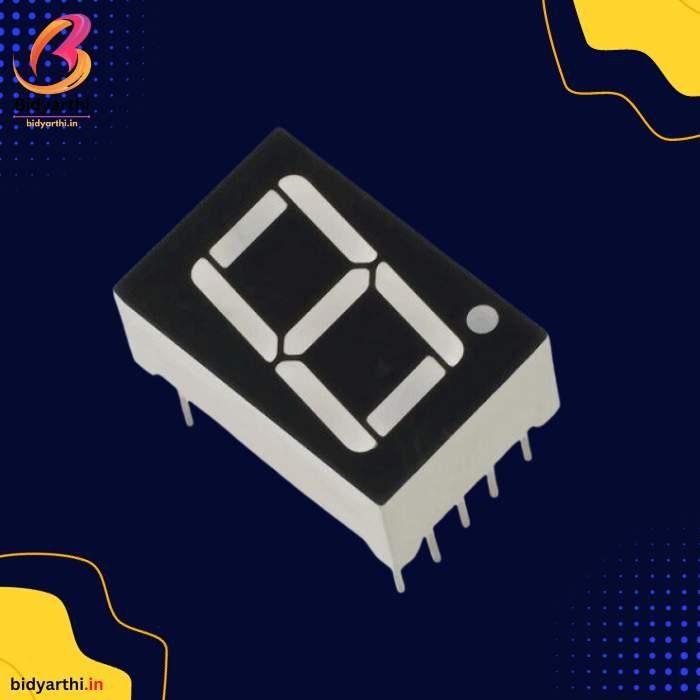

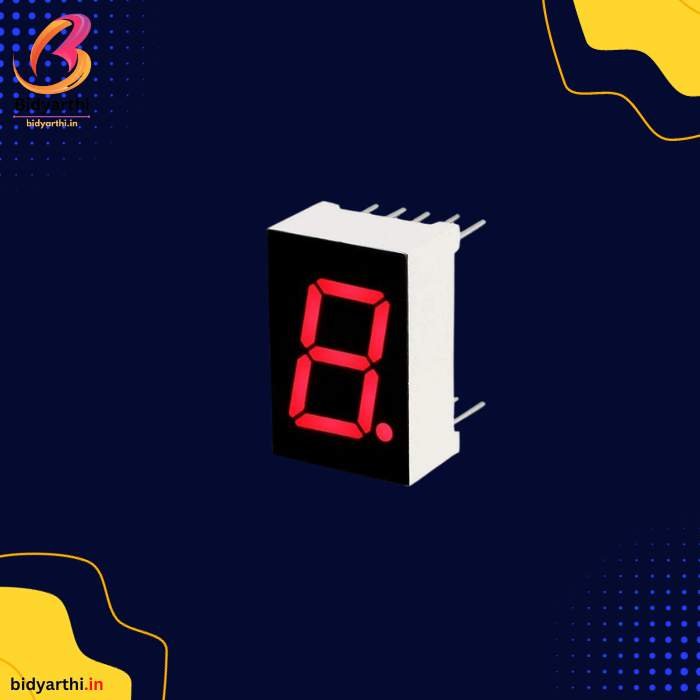

This is a 13 mm single character 0.56 inch 7-segment common cathode display. It is designed such that all the anode pins of the LED are connected to Vcc. The viewing distance can be up to 7m and the display color is red. The drive IC has to sink enough current through it to glow the respective LED. Seven segment Display is commonly used along with microcontrollers or display drivers in applications where a bigger and a brighter display are needed. Alternative to this, is the 7-segment common cathode display.

Specifications of the 7-segment Common Anode:

• Evenly lighted segments
• Common Anode Circuitry
• Color : Red
• Wide Viewing angle, ± 50 ° angle
• Luminous intensity: 2800 to 9000 ucd
• Wavelength: 612 to 625 nm
• Typical forward voltage : 2V
• Current Consumption : 30mA/segment
• Peak Current :70mA
• Package: 13mm

Additional Resources

• 7-Segment display datasheet

Package Includes

1 x 7-Segment Display (Common Anode) – Red
