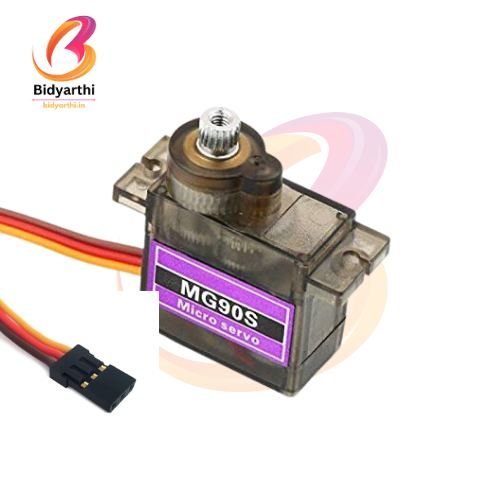

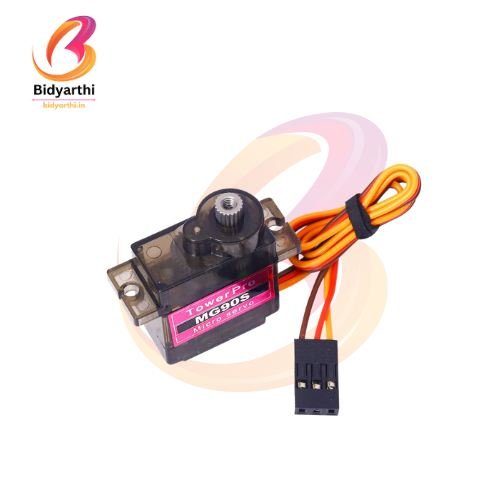

Model: MG90S,High resolution,Accurate positioning - Fast control response,Constant torque throughout the servo travel range,Excellent holding power
- Operating Voltage: 4.8 – 6 V,Operating Speed at 4.8V: 0.10sec/60°,Operating Speed at 6V: 0.08sec/60°
- Operating Temperature: 0-55°C,Dead Band Width: 5μs,Rotational Degree: 180º,Cable Length: 25mm
- Motor Size:- Length: 12.5mm,Width: 22.9mm,Height: 32.5mm,Weight: 13gm
Product description
Tiny and lightweight with high output power, this tiny servo is perfect for RC Airplane, Helicopter, Quadcopter, or robot. This servo has metal gears for added strength and durability. The servo can rotate approximately 180º (90 in each direction) and works just like the standard kinds but smaller. You can use any servo code, hardware, or library to control these servos. Good for beginners who want to make stuff move without building a motor controller with feedback & gearbox, especially since it will fit in small places. It comes with 3 horns (arms) and hardware.
What is in the Box ?

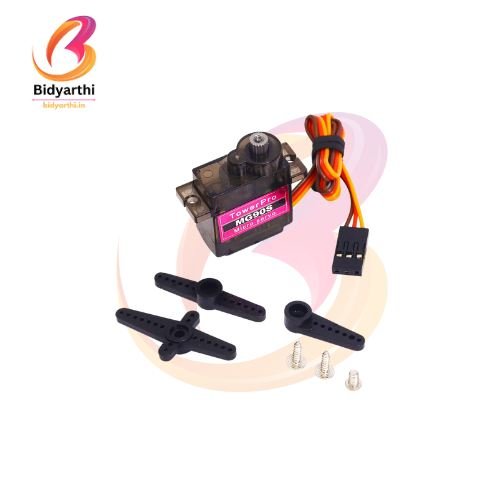

1 x MG90S SERVO MOTO MICRO 9G with fittings
