Manufacturer
|
|
Manufacturer Product Number
|
9CRAO412G5036
|
|
|
Description
|

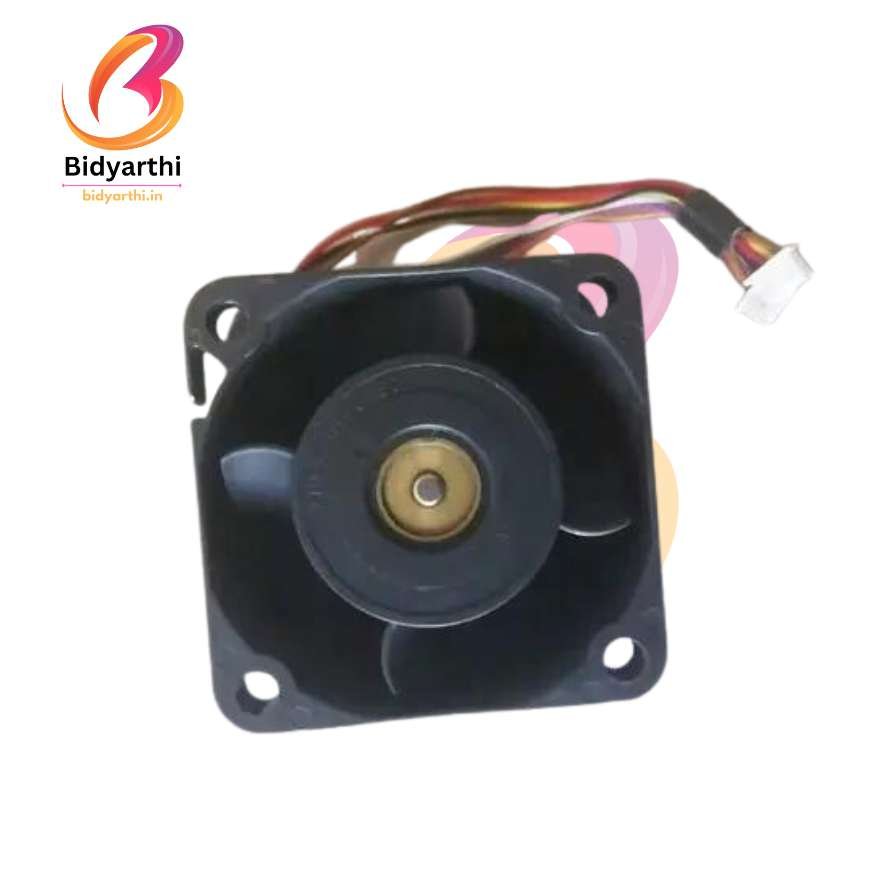

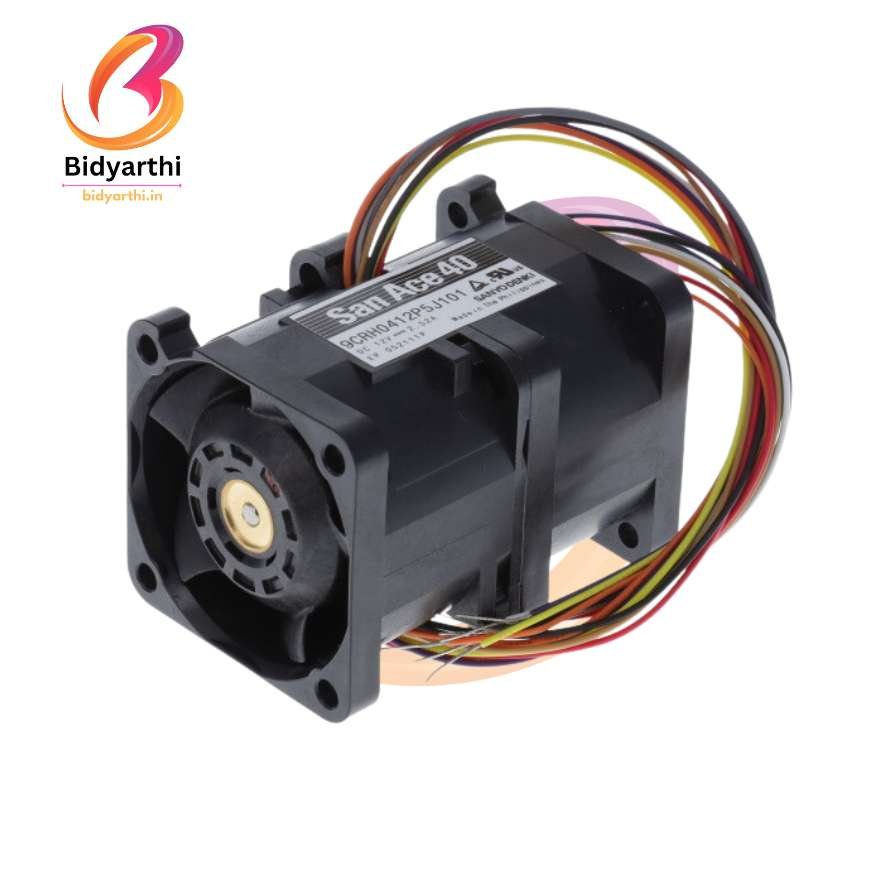

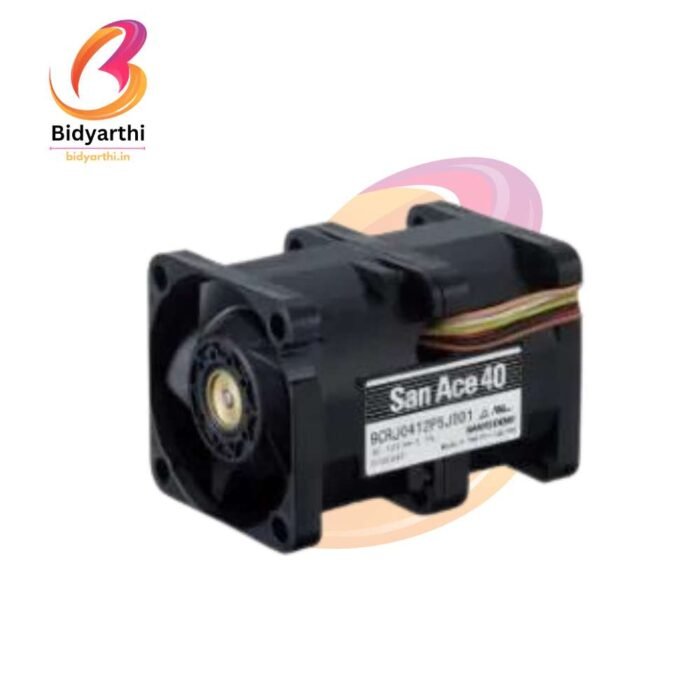

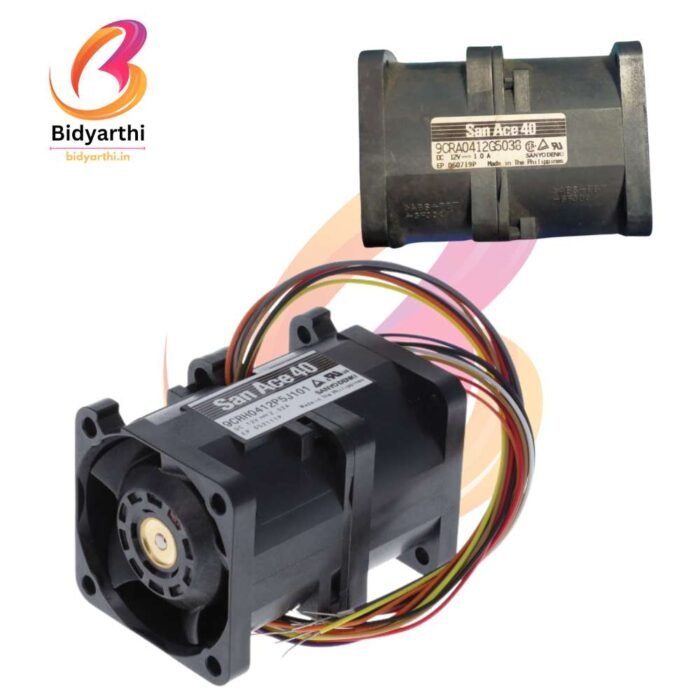

FAN AXIAL DUAL 40X56MM 12VDC
|
|
|
Detailed Description
|
Fan Tubeaxial (Dual) 12VDC Square – 40mm L x 40mm H Ball 32.9 CFM (0.921m³/min) 4 Wire Leads per Fan
|
Product Attributes
|
Type
|
Description
|
Select
|
|---|
|
Category
|
Fans, Thermal Management
Fans
DC Brushless Fans (BLDC)
|
|
|
Mfr
|
|
|
|
Series
|
San Ace 40
|
|
|
Package
|
Bulk
|
|
Product Status
|
Active
|
|
|
Voltage – Rated
|
12VDC
|
|
|
Size / Dimension
|
Square – 40mm L x 40mm H
|
|
|
Width
|
56.00mm
|
|
|
Air Flow
|
32.9 CFM (0.921m³/min)
|
|
|
Static Pressure
|
6.830 in H2O (1701.2 Pa)
|
|
|
Bearing Type
|
Ball
|
|
|
Fan Type
|
Tubeaxial (Dual)
|
|
|
Features
|
Counter-Rotating, Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
|
|
|
Noise
|
70.0dB(A)
|
|
|
Power (Watts)
|
30.24 W
|
|
|
RPM
|
29500 Front, 25500 Rear
|
|
|
Termination
|
4 Wire Leads per Fan
|
|
|
Ingress Protection
|
–
|
|
|
Operating Temperature
|
-4 ~ 158°F (-20 ~ 70°C)
|
|
|
Approval Agency
|
cURus, TUV
|
|
|
Weight
|
0.243 lb (110.22 g)
|
|
|
Current Rating (Amps)
|
2.52A
|
|
|
Voltage Range
|
10.8 ~ 12.6VDC
|
|
|
Material – Frame
|
Plastic
|
|
|
Material – Blade
|
Plastic
|
|
|
Lifetime @ Temp.
|
30000 Hrs @ 60°C
|
|
|
Base Product Number
|
9CRAO412
|
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
Package Includes:
1 x San Ace 40 (Model 9CRAO412G5036)
